How Much Does a Floating Dock Cost? The Ultimate Price Guide & TCO Breakdown

Let us address the core anxiety immediately: what are the realistic, aggregate floating dock prices in today’s market? Based on current marine construction data, structural engineering reports, and national contractor averages, the surface-level cost to build a floating dock ranges from $20 to $60+ per square foot.

This massive $40 variance is rarely driven by the deck surface itself; rather, it is dictated by the unseen complexity of underwater anchoring and municipal compliance.

However, aggregate averages mean very little without structural context. A 10×10 foot swim raft functions very differently from a U-shaped boat slip designed to cradle a 5,000-pound wakeboard boat. Below is a precise pricing matrix based on a standard 10×20 foot (200 sq. ft.) configuration. This establishes your initial financial baseline before advanced engineering, anchoring, and logistical costs are applied.

*Critical Note: This baseline strictly covers the top-side decking and the sub-surface float modules. It explicitly excludes underwater anchoring hardware, gangways, environmental permitting, and oversized freight surcharges.*

The Impact of Regional Cost Variations

To further complicate the cost of a floating dock, geography plays an immense role in your final bill. A project in a serene Midwestern quarry lake will carry a vastly different financial profile than one built on the hurricane-prone coast of Florida or the aggressive tidal shifts of the Pacific Northwest.

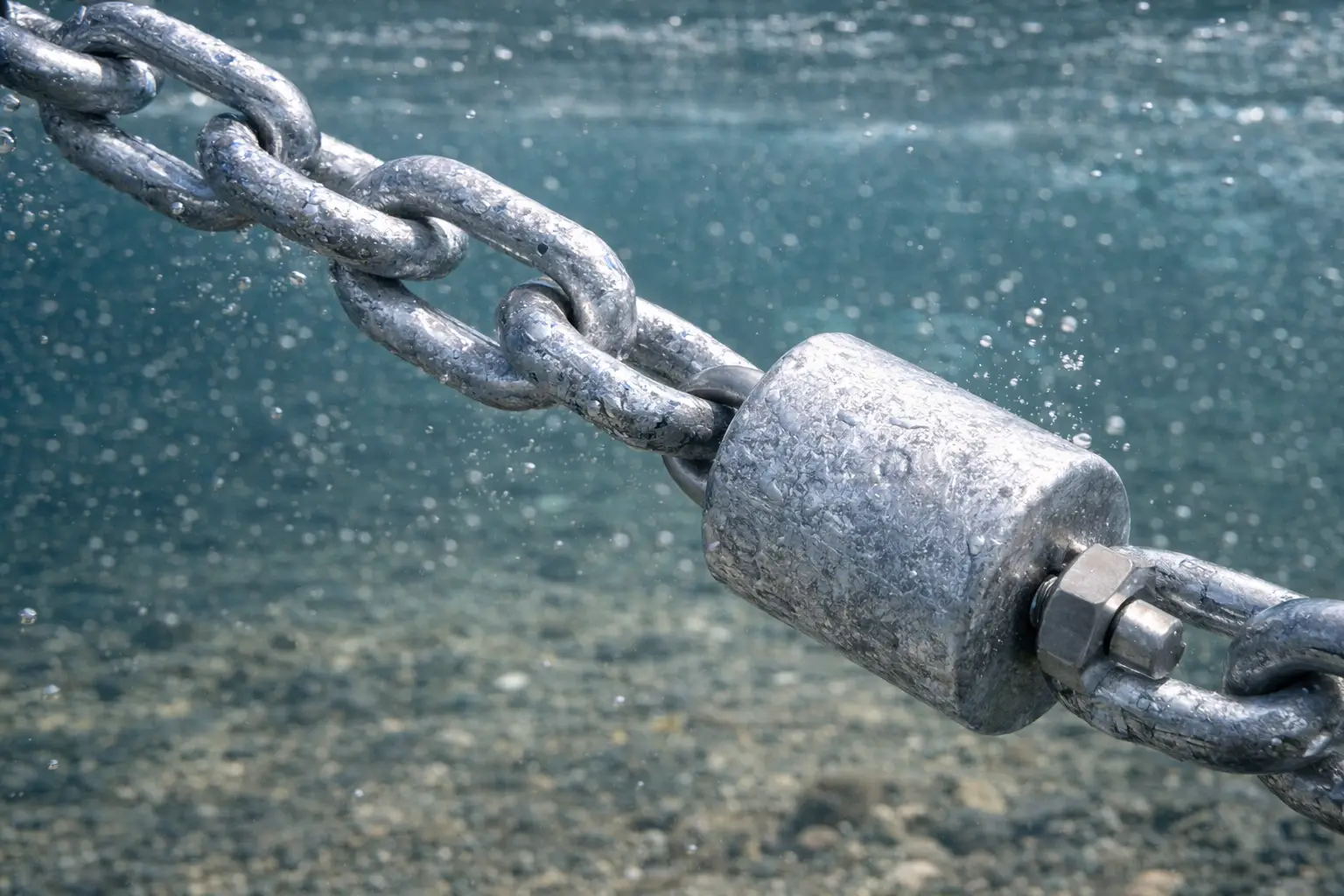

• Coastal / Saltwater Environments: The immediate necessity for marine-grade alloys, specialized sacrificial anodes (zincs), and extreme-wave attenuation designs can push the baseline floating boat dock cost up by 30% to 50%. You simply cannot put a cheap freshwater lake dock in saltwater and expect it to survive a single season.
• Northern Climates (Ice Zones): In areas that freeze solid during winter, owners must factor in the cost of either hauling the dock out of the water every autumn (requiring expensive labor or winch systems) or investing in heavy-duty bubbler/de-icer systems (costing $800 – $1,500+) to prevent crushing ice pressure from destroying the floats.
• High-Fetch Wind Zones: If your shoreline faces a long expanse of open water (fetch), wind-generated wave action requires significantly upgraded hinge joints and heavier anchoring chain, immediately escalating the budget.

The materials you select for your walking surface and structural frame do not just dictate the initial floating dock cost; they fundamentally alter the physics of the structure and dictate the grueling maintenance trajectory of your waterfront life for the next twenty years. Understanding the concept of “Dead Load” (the permanent weight of the structure) versus “Live Load” (people and equipment) is critical here.

Traditional Wood Frameworks: The Illusion of Affordability

Pressure-treated pine and natural cedar represent the traditional, romanticized entry-level option. When homeowners search for a cost to build a floating dock, wood often looks like the clear winner on a spreadsheet. However, wood is essentially a heavy, dense, water-absorbent sponge.

This creates a massive dead load. Because wood is so incredibly heavy, you will constantly be asking your contractor, “how many dock floats do i need?” just to keep the skeletal framing safely above the waterline. The money you save on raw lumber is immediately cannibalized by the absolute necessity to purchase 30% to 40% more flotation barrels just to keep the structure buoyant. Furthermore, wood introduces severe environmental liabilities; Chromated Copper Arsenate (CCA) treated wood is highly restricted in many municipal drinking-water reservoirs due to toxic chemical leaching.

Composite Decking: The Heavyweight Contender

Many buyers attempt to upgrade from wood to composite decking to escape the splintering and sealing. While composite boards look fantastic and require little surface maintenance, they introduce two hidden flaws into a floating system. First, they are extremely heavy—often heavier than wet lumber—exacerbating the dead load issue. Second, dark composite materials absorb and retain immense amounts of solar radiation. On a 90°F (32°C) summer afternoon, a dark composite deck can easily exceed 140°F (60°C), making it physically impossible to walk on barefoot.

Marine-Grade Aluminum: The Commercial Standard

Marine-Grade Aluminum (specifically alloys like 6061-T6) acts as the high-end counter-measure. Aluminum dramatically reduces the system dead load, freeing up maximum buoyancy capacity for actual live loads, and is impervious to rust and rot. However, aluminum fabrication requires specialized TIG welding and premium raw materials. The sheer cost means this material is often reserved for commercial floating dock marina applications, commanding prices well north of $50 per square foot and providing a poor ROI for private owners.

The Core Engine: The Science of Blow-Molded HDPE Dock Floats

Whether you choose wood or metal for the top deck, the entire structure is utterly useless if the flotation beneath it fails. When examining any floating dock kit, High Molecular Weight High-Density Polyethylene (HDPE) represents the absolute global standard for longevity, stability, and total economic value.

Why do elite engineering firms and global suppliers insist on HDPE? It comes down to the microscopic integrity achieved through industrial blow-molding. Unlike cheap rotational molding which can leave thin spots in the corners, state-of-the-art blow-molding extrudes the heated polymer into a perfectly uniform, hollow vessel. This process guarantees extreme structural integrity without adding unnecessary dead weight.

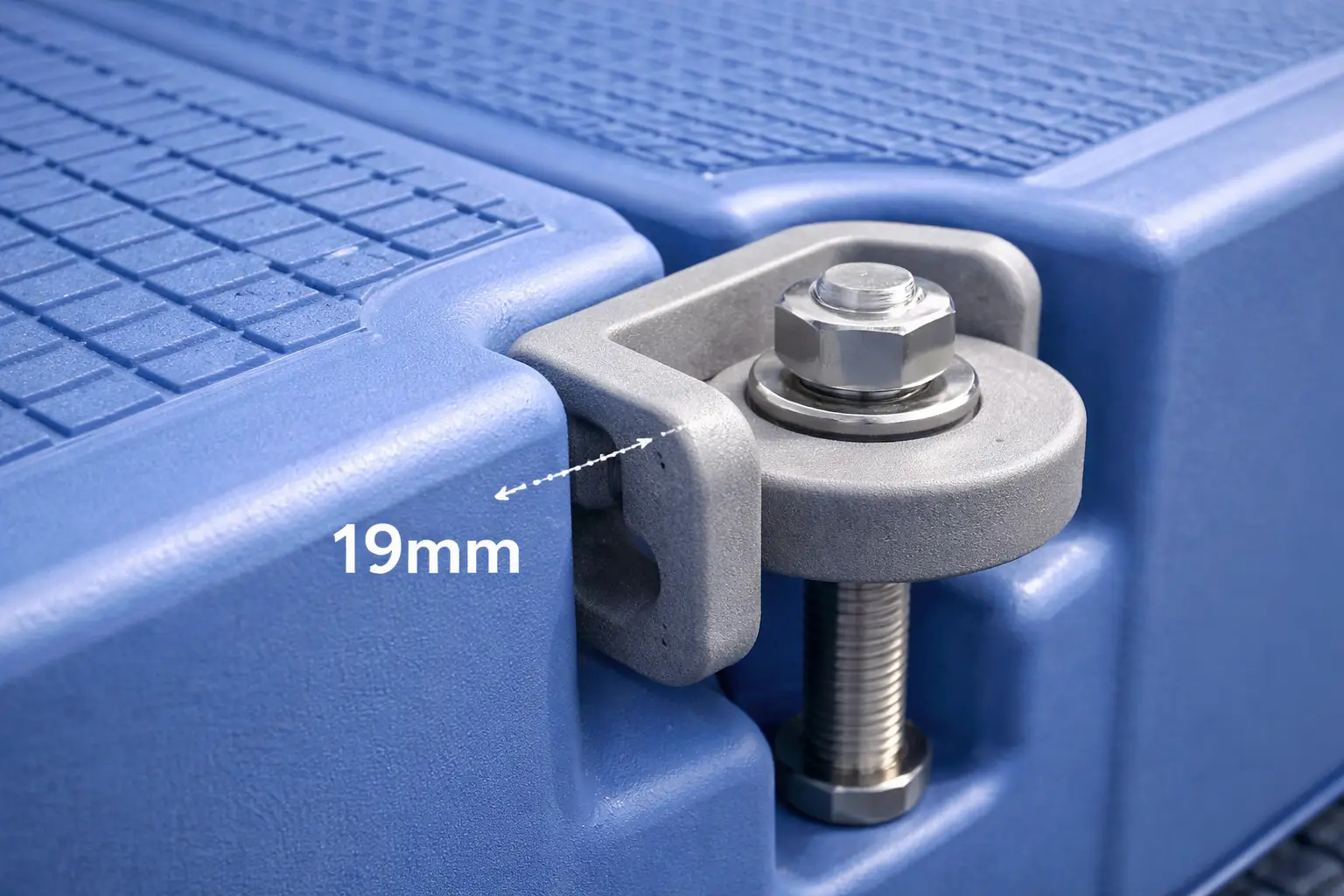

• Tensile Strength and Connection Redundancy: The most common point of failure during a severe storm is not the float itself, but where the float bolts to the frame. Industry-leading modular systems (such as those engineered by Hiseadock) specifically design their connection “ears” to a thickness of 19mm. This is over 40% thicker than the industry standard, providing massive kinetic energy absorption and preventing catastrophic tearing.
• Extreme Weather Resilience & Thermal Shock: High-grade HDPE is formulated to survive brutal thermal shock. It can easily withstand temperature swings from a freezing -60°C up to a scorching 80°C. Furthermore, it must meet or exceed the strict ASTM D1998 standard for environmental stress-cracking and UV resistance, guaranteeing the plastic will not become brittle or chalky after a decade of relentless sun exposure.
• Reliable, Calculated Buoyancy: A properly engineered HDPE modular pontoon removes the guesswork. A premium system can comfortably and consistently support up to 350 kg per square meter, providing a completely stable, anti-skid surface that feels as secure as walking on dry land.

A floating platform is financially worthless if it washes onto your neighbor’s shoreline during a spring squall. Water depth, bottom substrate (mud, sand, or solid bedrock), and seasonal tidal shifts heavily dictate your anchoring method. These underwater mechanics frequently add thousands of dollars to the overall floating boat dock cost, yet they are rarely mentioned in preliminary online quotes.

Heavy-Duty Piling vs. Deadweight Anchor Drops

Driving wooden, steel, or PVC pilings deep into the seabed is the most structurally robust stabilization method. However, the logistics are brutally expensive. Renting a specialized marine pile driver and dispatching a barge crew often costs between $800 to $1,500 per piling. For deep water lakes or rocky bottoms where pile driving is physically impossible, deadweight anchors (massive concrete blocks) are the primary alternative. The marine labor required to accurately drop these blocks—and the specialized hardware connecting them—adds significant, undocumented layers to your budget.

Before launching a single module into the water, bureaucratic and environmental protection regulations represent another massive blind spot. Depending on your jurisdiction, you may need permits from your local municipality zoning board, the Department of Natural Resources (DNR), or the United States Army Corps of Engineers (USACE). Permit application fees, mandatory environmental impact studies, and structural CAD drawing submissions can effortlessly add $500 to $2,500 to your project overhead.

More importantly, ignoring these regulations introduces catastrophic financial risk. Numerous environmental agencies have completely outlawed the use of exposed, raw EPS foam blocks to stop microplastics from choking aquatic ecosystems. If a marine inspector discovers you have used cheap, un-encapsulated foam, you face thousands of dollars in immediate fines and a mandatory dismantling order. Selecting 100% recyclable, fully enclosed HDPE materials is a non-negotiable insurance policy against compliance penalties.

A recurring nightmare on marine building forums involves the sudden shock of shipping fees. Marine structures are textbook examples of “Oversized Loads.” Standard Less-Than-Truckload (LTL) carriers will charge exorbitant “dimensional weight” penalties for shipping long, fully welded 20-foot aluminum frames. Ordering a heavy timber dock from a supplier three states away often requires a dedicated Flatbed truck, turning the shipping invoice into the single largest line item on your budget.

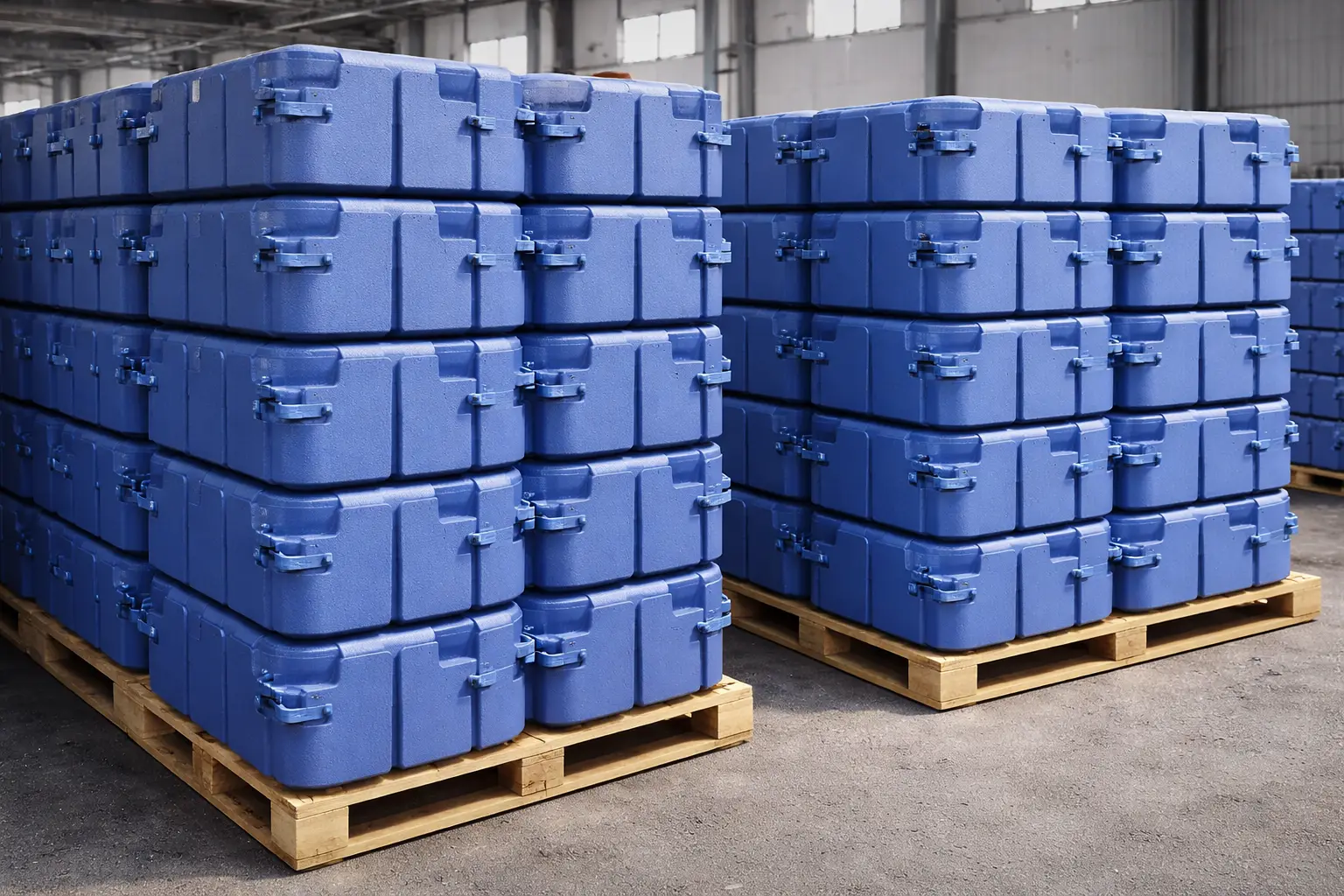

This is where modular system engineering shines. Instead of amateur 2D shipping estimates, elite global HDPE manufacturers utilize precision 3D pallet stacking. By engineering the modular floats to nest perfectly into one another, manufacturers can optimize intermodal shipping container space, increasing load efficiency by up to 30%. This drastic reduction in wasted “air space” translates directly to a significantly lower per-unit freight cost delivered straight to your shoreline.

As we synthesize all these complex variables, it becomes aggressively evident that fixating solely on the initial retail floating dock prices is a fundamentally flawed financial strategy. To protect your real estate investment, you must calculate the Total Cost of Ownership (TCO) over a 10-year horizon.

Let’s map this exact formula across the three dominant materials using advanced behavioral economics and real-world depreciation data.

When you graph these timelines, the financial realities become undeniable. By Year 3, a premium modular HDPE system—such as those precision-engineered by Hiseadock—surpasses the “budget” wood dock in outright affordability. By severing the endless cycle of repair labor, high logistics penalties, and material degradation, a high-quality modular system stands as the ultimate waterfront investment. Don’t let hidden fees sink your shoreline dreams. Invest intelligently from day one.
